Numero di articolo: 7200100107

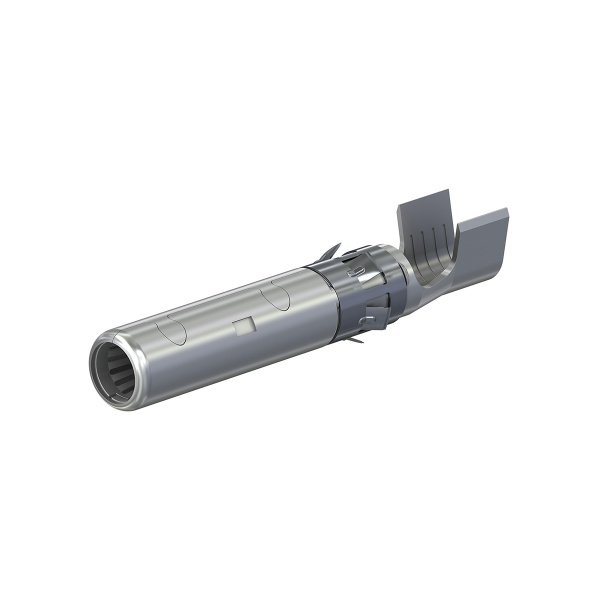

Connettore femmina MC4 Evo2 - BV-SP 4/6
Connettore di ricambio, sezione 4/6 mm²
Disponibilità
1264 Pezzo disponibile
Merkmale
Tipo di connettore CC
EVO2
Adatto a IBC FlexiSun [mm²]
4 BIS 6
Sezione trasversale minima [mm²]
4
Sezione trasversale massima [mm²]
6
I max (A)
45 BIS 53
Descrizione
Single contact for Stäubli MC4-Evo2 socket 6 mm²
These are individual contacts for the Stäubli MC4 connectors
PV-KBT4-EVO 2/6I-UR and PV-KBT4-EVO 2/6II-UR.
The contacts are based on the Stäubli patented MULTILAM technology.
Maximum system voltage 1500V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 4.7 to 8.4 mm
and a conductor cross-section of 4 or 6 mm² (12;10 AWG)
Rated current TÜV: 45 A (4 mm²) and 53 A (6 mm²)
These are individual contacts for the Stäubli MC4 connectors
PV-KBT4-EVO 2/6I-UR and PV-KBT4-EVO 2/6II-UR.
The contacts are based on the Stäubli patented MULTILAM technology.
Maximum system voltage 1500V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 4.7 to 8.4 mm
and a conductor cross-section of 4 or 6 mm² (12;10 AWG)
Rated current TÜV: 45 A (4 mm²) and 53 A (6 mm²)
