Numero di articolo: 5001000051

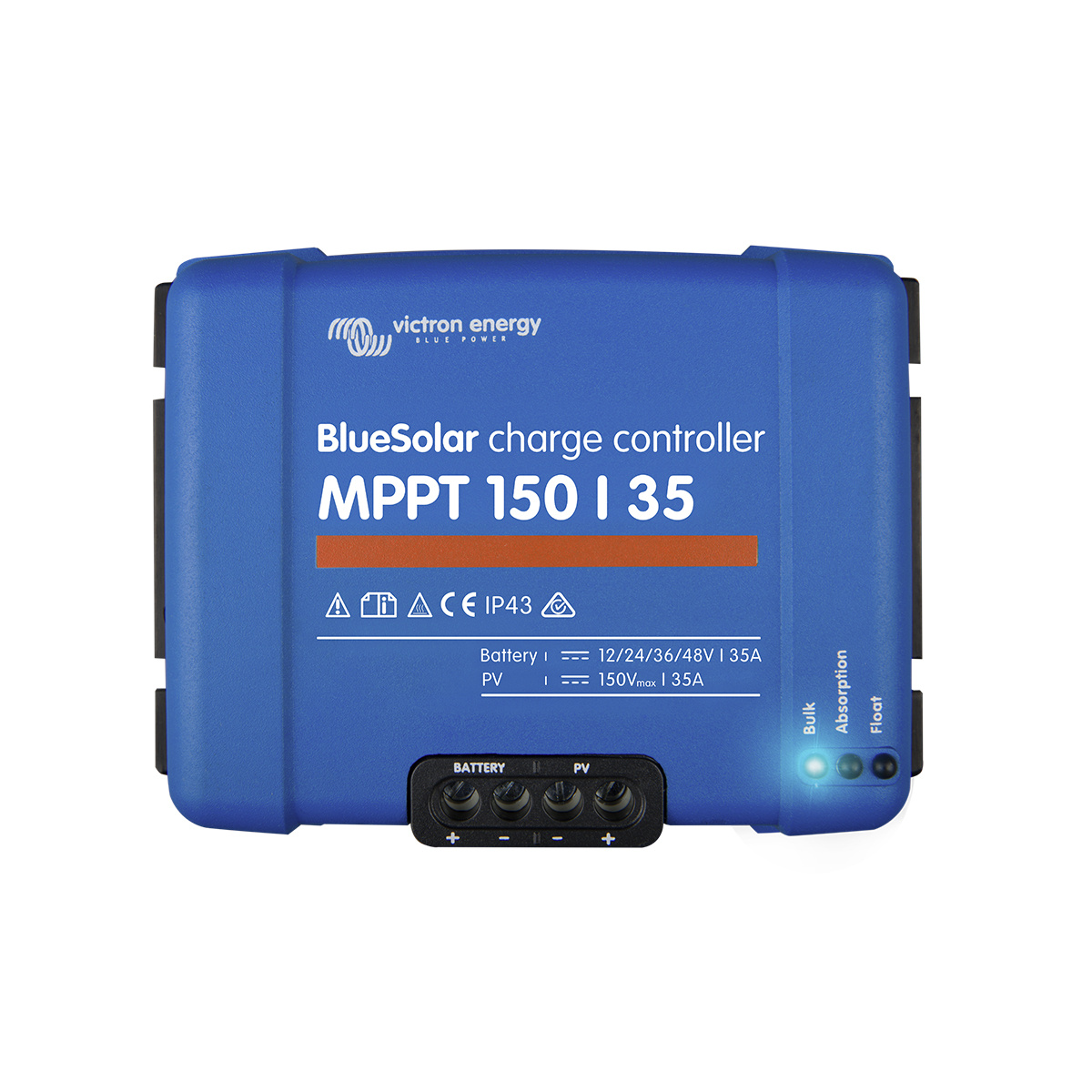

Victron BlueSolar MPPT 150/35
Regolatore di carica solare
Disponibilità
disponibile per settimana: 49/2024
Merkmale
Profondità [mm]
70
Larghezza [mm]
186
Altezza [mm]
130
Peso [kg]
1,25
Tensione massima CC [V]
145
Protezione IP
43
Corrente di carico massima [A]
35
Tensione di sistema [V]
12 / 24 / (36) / 48
Regolatore programmabile
Si
Display
Opzionale
Funzione luce notturna
Si
Corrente massima del modulo [A]
40
Efficienza massima [%]
98
Gruppo di prodotti
Charge controllers
Descrizione
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
