Numero di articolo: 5202000022

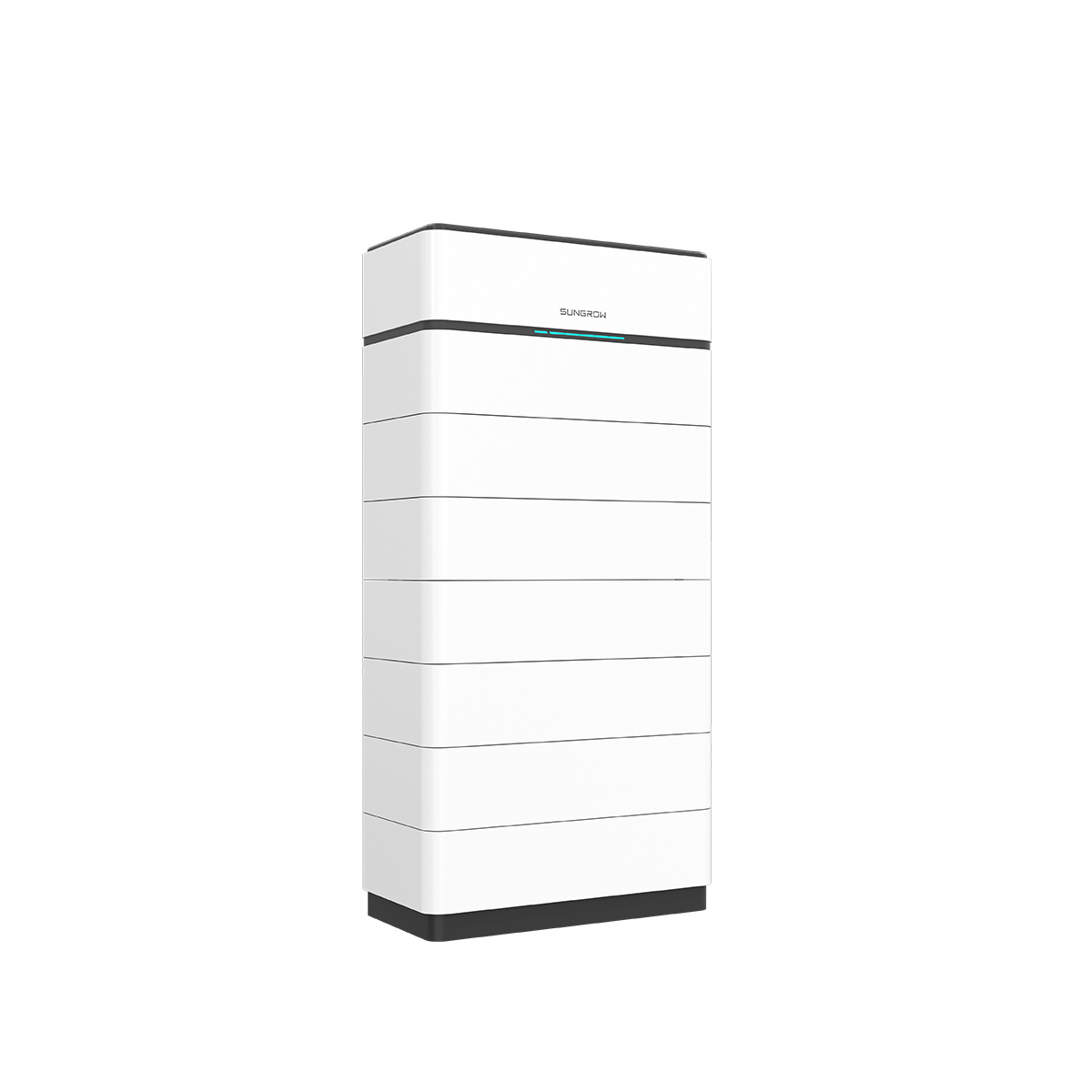

Sungrow SBH350
Batterie da 35kWh
Prices and availabilities visible only after login
Merkmale
Larghezza [mm]
675
Altezza [mm]
1380
Peso [kg]
331
Energia [kWh]
35
Profondità massima di scarica [%]
100
Tipo di batteria
Litio
Tensione nominale [V]
492,8
Descrizione
The Sungrow SBH Series is a modular high voltage battery system for the usage with Sungrow SH-xxT hybrid inverters (15-25kW). It can be used for self-consumption increase and backup applications.
It offers the following features:
- Easy installation: Handles support the installer; No need of wiring between the battery modules
- Small dimensions
- Easy commissioning, the battery is recognized automatically by the Sungrow iSolarcloud
The SBH 350 consists of one base unit and 7 battery modules which use prismatic LFP cells.
The usable capacity is 35kWh with a nominal charge/discharge power of 24,64kW.
The battery has a degree of protection of IP55, thats why it can be used for indoor and protected outdoor installation. Please note the temperature range of 0°C to 50°C.
Sungrow includes 10 years of warranty.
Certification acc. to VDE 2510-50, UN38.3, IEC 62040 und IEC 62619
It offers the following features:
- Easy installation: Handles support the installer; No need of wiring between the battery modules
- Small dimensions
- Easy commissioning, the battery is recognized automatically by the Sungrow iSolarcloud
The SBH 350 consists of one base unit and 7 battery modules which use prismatic LFP cells.
The usable capacity is 35kWh with a nominal charge/discharge power of 24,64kW.
The battery has a degree of protection of IP55, thats why it can be used for indoor and protected outdoor installation. Please note the temperature range of 0°C to 50°C.
Sungrow includes 10 years of warranty.
Certification acc. to VDE 2510-50, UN38.3, IEC 62040 und IEC 62619
