Numero di articolo: 5202000027

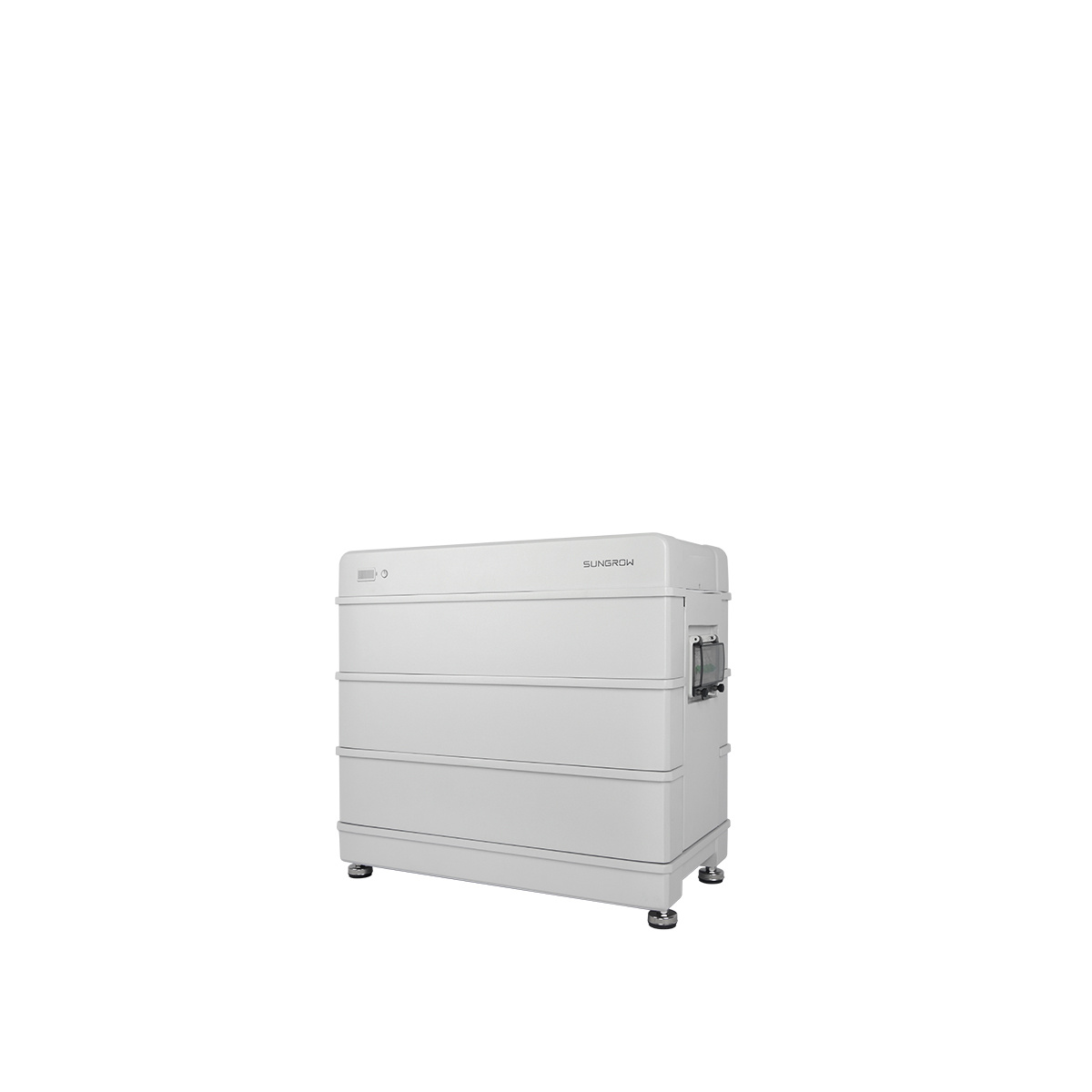

Sungrow SBR064
Battery 6,4kWh
Disponibilità
disponibile per settimana: 51/2024
Merkmale
Larghezza [mm]
625
Altezza [mm]
545
Peso [kg]
89
Energia [kWh]
6,4
Profondità massima di scarica [%]
100
Tipo di batteria
Litio
Tensione nominale [V]
128
Descrizione
The Sungrow SBR Series is a modular high voltage battery system for the usage with Sungrow hybrid inverters. It can be used for self-consumption increase and backup applications.
It offers the following features:
- Easy installation: Only one person necessary, handles support the installer; No need of wiring between the battery modules
- Small dimensions
- Easy commissioning, the battery is recognized automatically by the Sungrow iSolarcloud
The SBR 064 consists of one base unit, one module dummy and 2 battery modules which use prismatic LFP cells.
The usable capacity is 6,4kWh with a nominal charge/discharge power of 3,9kW.
The battery has a degree of protection of IP55, thats why it can be used for indoor and protected outdoor installation. Please note the temperature range of 0°C to 50°C.
Sungrow includes 10 years of warranty.
Certification acc. to VDE 2510-50, UN38.3, IEC 62040 und IEC 62619
It offers the following features:
- Easy installation: Only one person necessary, handles support the installer; No need of wiring between the battery modules
- Small dimensions
- Easy commissioning, the battery is recognized automatically by the Sungrow iSolarcloud
The SBR 064 consists of one base unit, one module dummy and 2 battery modules which use prismatic LFP cells.
The usable capacity is 6,4kWh with a nominal charge/discharge power of 3,9kW.
The battery has a degree of protection of IP55, thats why it can be used for indoor and protected outdoor installation. Please note the temperature range of 0°C to 50°C.
Sungrow includes 10 years of warranty.
Certification acc. to VDE 2510-50, UN38.3, IEC 62040 und IEC 62619
