Numero di articolo: 3602000080

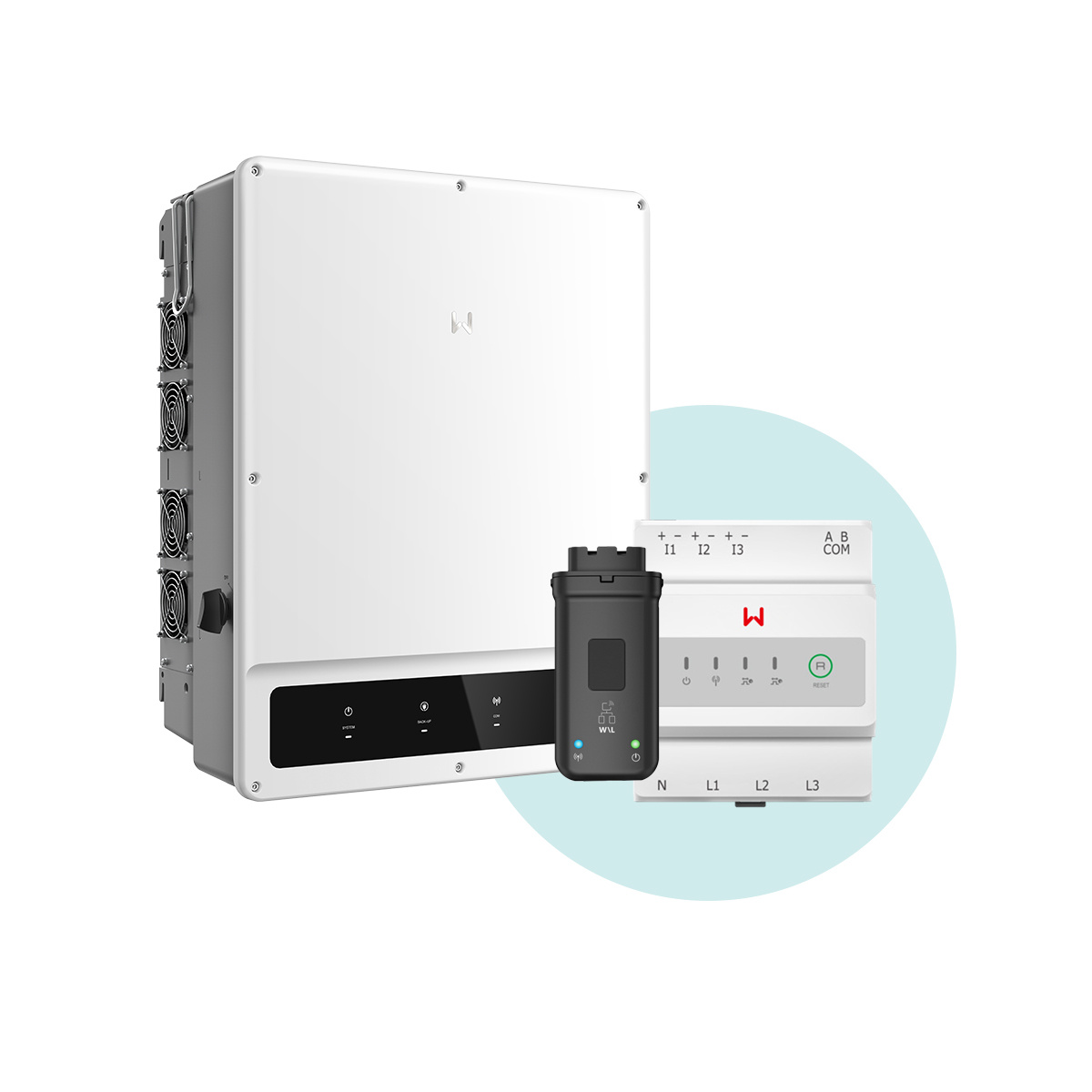

Goodwe GW50K-ET-10
Hybrid Inverter 3~, 50kVA AFCI
disponibile per settimana: 12/2025
Merkmale
Profondità [mm]
260
Larghezza [mm]
520
Altezza [mm]
660
Peso [kg]
65
Tipo di connettore CC
MC4
Tensione massima CC [V]
1,000
AC-potenza nominale [VA]
50,000
CC-potenza nominale [W]
51,250
Numero di fasi di immissione in rete
3
Numero di trackers MPP
4
Tipo di inverter
Ibrido
Protezione IP
66
N. di registrazione RAEE DE
33154372
Descrizione
The GW50K-ET hybrid inverter from GoodWe is a powerful, three-phase inverter that has been specially developed for commercial and industrial use.
With an AC output of 50 kW and up to four MPP trackers, it offers high flexibility and efficiency in energy conversion.
- DC overvoltage protection Type II included
- RCR connection included
- Dry contacts for switching of controllable loads
With an AC output of 50 kW and up to four MPP trackers, it offers high flexibility and efficiency in energy conversion.
- DC overvoltage protection Type II included
- RCR connection included
- Dry contacts for switching of controllable loads
WiFi/LAN Kit-20 included
DC Switch
for grid parallel conection
Protection class: IP66
Europ. Efficiency: 97,5%
H x W x D 660/520/260 mm
Max. connectablke PV Power: 75.000W
AC Nominal Power: 50.000W
max. DC Input Voltage: 1000V
Without Display
HV Battery (Please refer to the manufacturer's compatibility list)
Backup function possible in combination with the optional STS Box
Smartmeter GM330 included, CTs must be ordered separately (see accessories)
Warranty 5 Years
optional up to 20 years
The manufacturer's country-specific warranty & service conditions apply.
