Novità
Numero di articolo: 3001200152

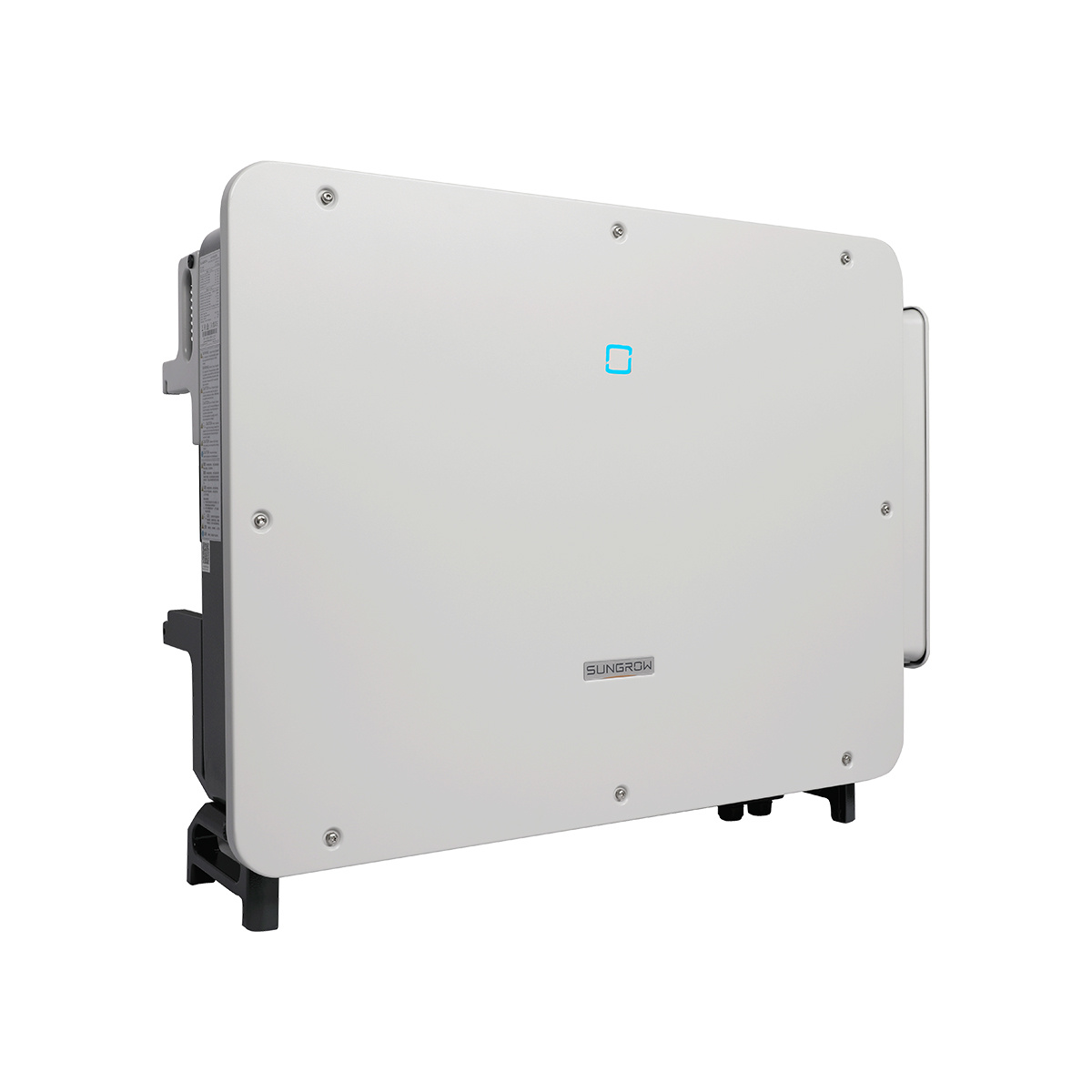

Sungrow SG125CX P2 V21
Inverter 3~
Disponibile
Merkmale
Profondità [mm]
360
Larghezza [mm]
1,019
Altezza [mm]
793
Peso [kg]
87
Tipo di connettore CC
MC4
Tensione massima CC [V]
1,100
AC-potenza nominale [VA]
125,000
CC-potenza nominale [W]
175,000
Efficienza massima () [%]
98,5
Numero di fasi di immissione in rete
3
Numero di trackers MPP
12
Tipo di inverter
Di rete
Protezione IP
66
52
N. di registrazione RAEE DE
28316743
Descrizione
AC output power: 125000VA
Max. PV input Voltage: V
euro efficiency: 98,3%
Protection rating: IP66
W x D x H 1019 / 793 / 360 mm
Can be used together with Sungrow Optimizers.
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
VDE-AR-N 4105:2018-11 and VDE-AR-N 4110:2018-11 available
Max. PV input Voltage: V
euro efficiency: 98,3%
Protection rating: IP66
W x D x H 1019 / 793 / 360 mm
Can be used together with Sungrow Optimizers.
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
VDE-AR-N 4105:2018-11 and VDE-AR-N 4110:2018-11 available
For further grid compliances, please see Sungrow release documentation.
