Numero di articolo: 3601200027

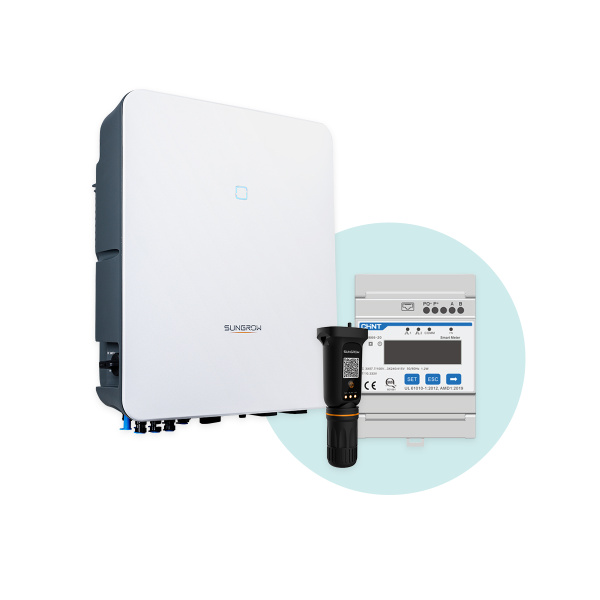

Sungrow SH8.0RT-20 V11
Hybrid Inverter 3~ 8kW
Disponibilità
6 Pezzo disponibile
Merkmale
Profondità [mm]
170
Larghezza [mm]
460
Altezza [mm]
540
Peso [kg]
27
Tipo di connettore CC
MC4
Tensione massima CC [V]
1,000
AC-potenza nominale [VA]
8,000
CC-potenza nominale [W]
8,175
Efficienza massima () [%]
98,4
Numero di fasi di immissione in rete
3
Lunghezza del cavo di collegamento [m]
2
Numero di trackers MPP
2
Tipo di inverter
Ibrido
Protezione IP
52
65
Descrizione
Hybrid storage inverter for self-consumption increase for Sungrow SBR and BYD HVM/HVS high voltage batteries
max 12 kWp PV power
max 8.000 VA output power
Standard warranty 10 years
Please note the country-specific service and warranty conditions of the manufacturer!
Sungrow energy meter and winet-dongle are included in this article.
Version V20 currently only has a release for Italy and Switzerland!
Sungrow inverters in combination with Optimizers from Tigo: Please be aware that Sungrow currently allows only 20% of Tigo equipped modules per inverter string. Background is a possible undervoltage of the string.
max 12 kWp PV power
max 8.000 VA output power
Standard warranty 10 years
Please note the country-specific service and warranty conditions of the manufacturer!
Sungrow energy meter and winet-dongle are included in this article.
Version V20 currently only has a release for Italy and Switzerland!
Sungrow inverters in combination with Optimizers from Tigo: Please be aware that Sungrow currently allows only 20% of Tigo equipped modules per inverter string. Background is a possible undervoltage of the string.
