Numero di articolo: 2006300015

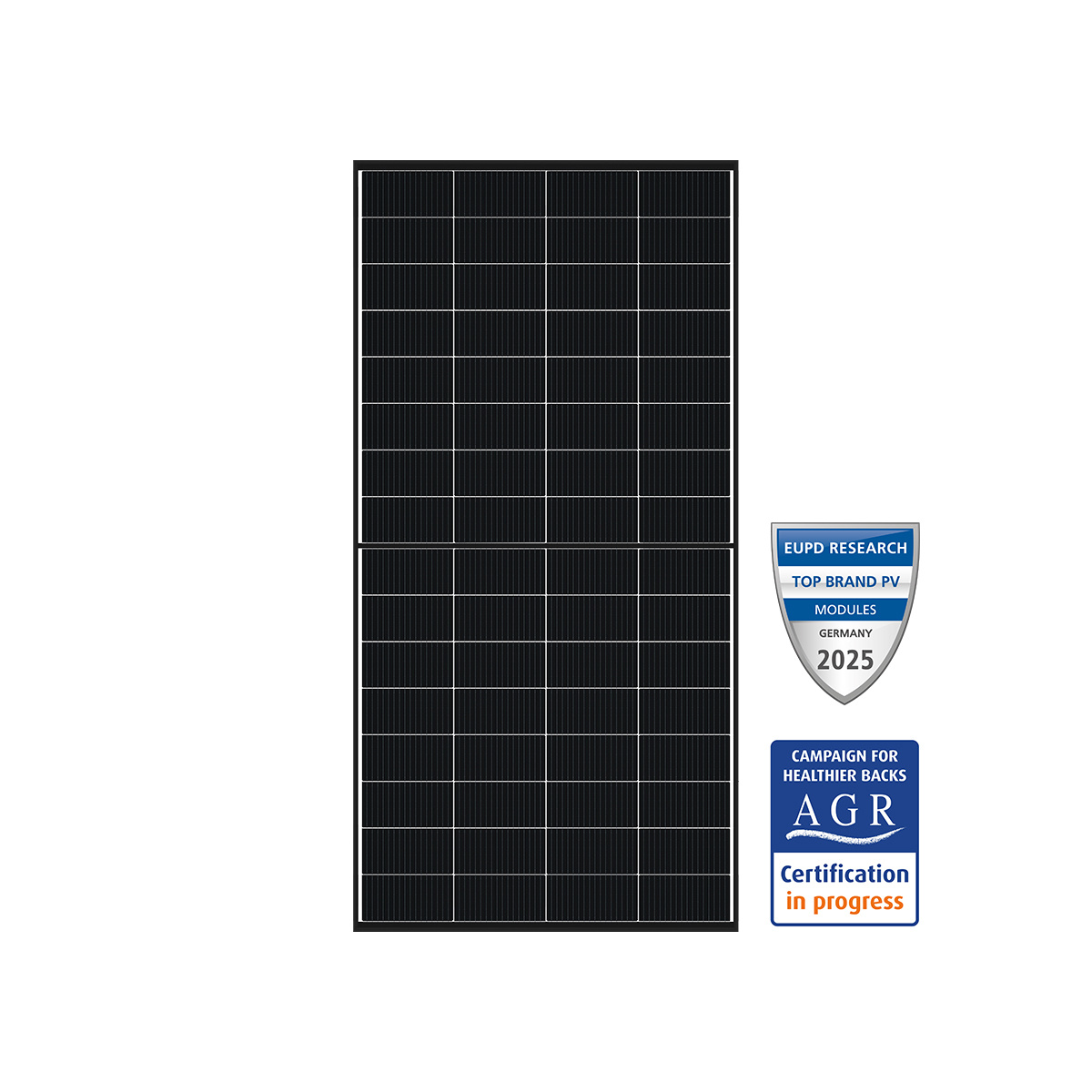

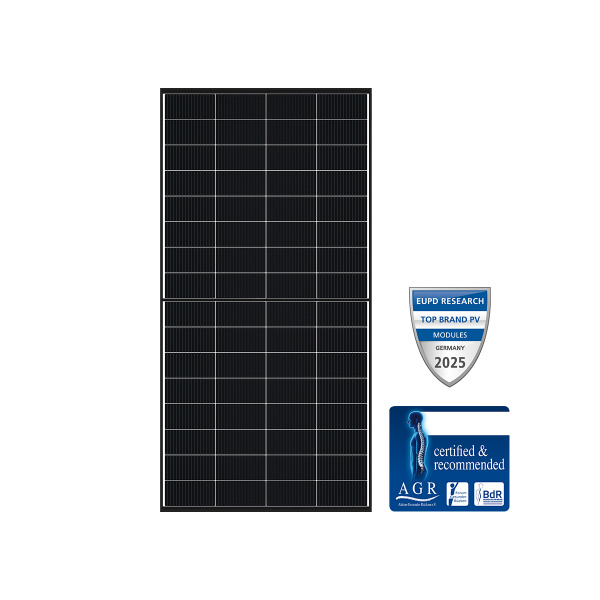

DMEGC DM260M10T-B32HBT
glass/glass, transparent, 1.1m
disponibile per settimana: 17/2025
Merkmale
Lunghezza [mm]
1,542
Larghezza [mm]
766
Altezza [mm]
30
Peso [kg]
15,3
Tipo di connettore CC
EVO2A
Tensione massima di sistema [V]
1,500
Efficienza del modulo [%]
22
Numero di celle
32
Tecnologia delle celle
TOPCON
Lunghezza del cavo di collegamento [m]
1,1
Intensità della corrente del fusibile di stringa [A]
30
Colore - backsheet
vetro
Colore cornice
Nero
Garanzia di prodotto (anni)
25
N. di registrazione RAEE DE
50188598
Tecnologia dei moduli
bifacciale
Potenza STC (Pmpp) [Wp]
260
Massimo carico di progetto compressione [N/m²]
5,400
Massimo carico di progetto trazione [N/m²]
2,667
Descrizione
Your advantages at a glance:
Technology:
Cell technology:
TOPCon (Tunnel Oxide Passivated Contact) is a cell technology that reduces electrical losses and increases efficiency through a thin oxide layer. It improves electron current conversion and is considered an advancement of PERC technology.
Cell format:
Half-cell technology divides solar cells into two halves, reducing electrical losses and resistance. This leads to higher efficiency and reliability, as well as better resistance to shading.
Module structure:
Double glass modules consist of glass on the front and back. They are characterized above all by better protection against damage and weather influences such as hail, wind and dirt as well as increased cell protection. In addition, they can be disposed of more sustainably and are easier to recycle.
Warranty:
Product warranty:
The product warranty for this module is 25 years. It covers defects such as cracks, delamination or faulty connections and guarantees proper functioning under normal conditions. The warranty includes repair or replacement by the manufacturer.
Performance warranty:
The performance warranty for this module is 30 years. After the warranty period, a minimum performance of 87.4% is guaranteed.
About the company:
DMEGC SOLAR is a leading provider of innovative photovoltaic solutions, driving sustainability and technological advancement. By utilizing cutting-edge technologies, the company maximizes energy efficiency while simultaneously reducing the carbon footprint of its solar modules. With a strong commitment to research and development, DMEGC SOLAR continuously expands its product portfolio to meet market demands and pave the way for a more sustainable energy future. By building long-term partnerships with industry leaders, the company offers tailored solutions that drive the success of renewable energy projects worldwide.
- Ergonomic: This module sets new standards for ergonomic work on the roof as the module is approximately 40 % lighter than standard modules.
- Compact: With 40% less surface area while maintaining the same efficiency, this module is ideal for complex roof structures.
- Alpine application: Extremely resistant to snow and wind
- Eco-friendly: PFAS-free - our products guarantee maximum safety and sustainability, as we do not use hazardous chemicals and thus make our contribution to environmental protection.
Technology:
Cell technology:
TOPCon (Tunnel Oxide Passivated Contact) is a cell technology that reduces electrical losses and increases efficiency through a thin oxide layer. It improves electron current conversion and is considered an advancement of PERC technology.
Cell format:
Half-cell technology divides solar cells into two halves, reducing electrical losses and resistance. This leads to higher efficiency and reliability, as well as better resistance to shading.
Module structure:
Double glass modules consist of glass on the front and back. They are characterized above all by better protection against damage and weather influences such as hail, wind and dirt as well as increased cell protection. In addition, they can be disposed of more sustainably and are easier to recycle.
Warranty:
Product warranty:
The product warranty for this module is 25 years. It covers defects such as cracks, delamination or faulty connections and guarantees proper functioning under normal conditions. The warranty includes repair or replacement by the manufacturer.
Performance warranty:
The performance warranty for this module is 30 years. After the warranty period, a minimum performance of 87.4% is guaranteed.
About the company:
DMEGC SOLAR is a leading provider of innovative photovoltaic solutions, driving sustainability and technological advancement. By utilizing cutting-edge technologies, the company maximizes energy efficiency while simultaneously reducing the carbon footprint of its solar modules. With a strong commitment to research and development, DMEGC SOLAR continuously expands its product portfolio to meet market demands and pave the way for a more sustainable energy future. By building long-term partnerships with industry leaders, the company offers tailored solutions that drive the success of renewable energy projects worldwide.
