Merkmale
Profondità [mm]
111
Larghezza [mm]
254
Altezza [mm]
180
Peso [kg]
1,8
Tensione massima CC [V]
1100
Numero di trackers MPP
2
N. di registrazione RAEE DE
71566755
Corrente massima in ingresso per stringa [A]
20
Corrente massima in ingresso (I max) [A]
80
Protezioni di sovratensione
Si
Numero massimo di stringhe
2
Tipo di connessione DC
Morsetto
Tipo di scaricatore
Tipo II
Descrizione

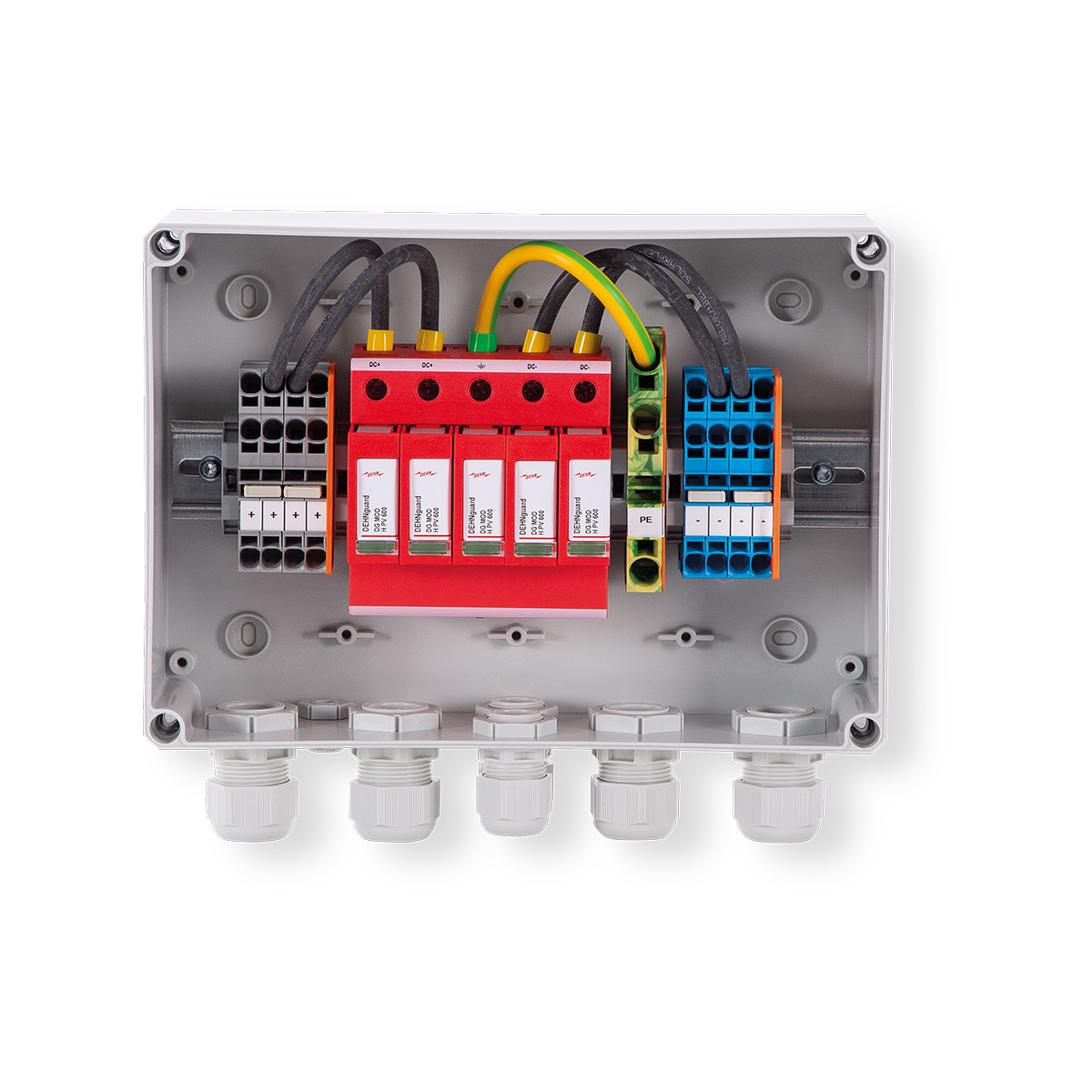

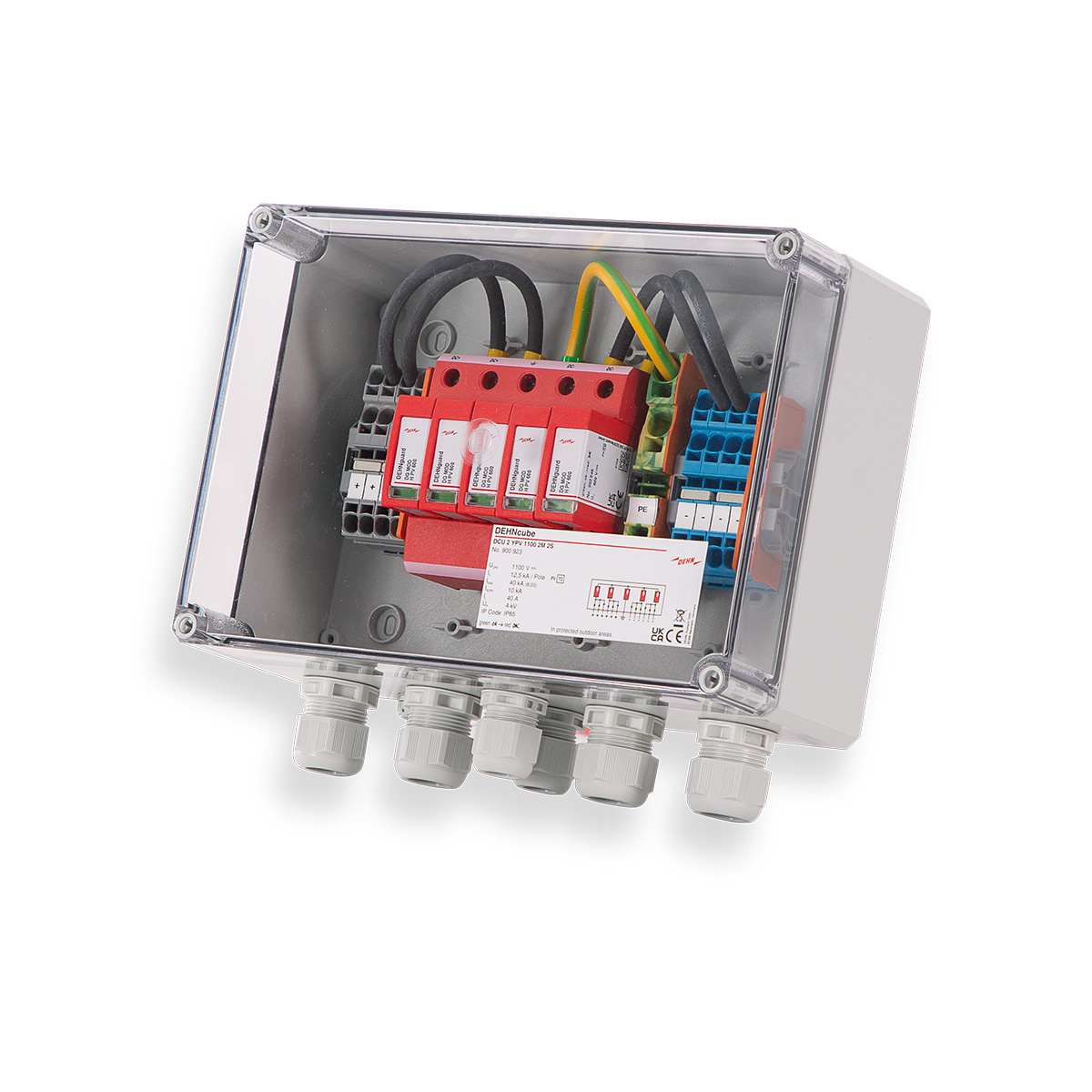

generator junction box for 1-2 strings per MPPT
Surge protection device: Type 2
string fuse: -
Isc (string): 16 A
Max. Isc (string): 20 A
Max. Uoc: 1100 VDC
Max. connection (in): 6 mm²
Max. connection (out): 16 mm²
dimensions (WxHxD): 254 x 180 x 111 mm
transparent cover
Surge protection device: Type 2
string fuse: -
Isc (string): 16 A
Max. Isc (string): 20 A
Max. Uoc: 1100 VDC
Max. connection (in): 6 mm²
Max. connection (out): 16 mm²
dimensions (WxHxD): 254 x 180 x 111 mm
transparent cover
